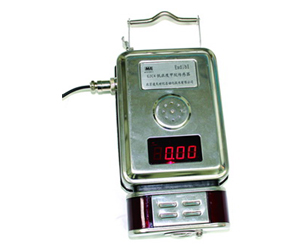

    Low Concentration CH4 Meter gas detector

    Ask Lasest Price
    Brand Name : TOPSKY
    Model Number : JAH100
    Price : 300-350 USD/Piece
    Delivery Time : 3 days
    Payment Terms : TT / Paypal
    Supply Ability : 500 pieces per month
    • Product Details
    • Company Profile

    Low Concentration CH4 Meter gas detector

    Low Concentration CH4Meter

    ModelGJC4

    BrandTOPSKY

    Specifications

    Sensor for low concentration methane, on-spot display, long-distance signal communication, sound and light alarm, infrared remote

    Application

    1. This product forms a new generation of intelligent methane sensors. With the

    standard signal output.

    2.It can work together with various kinds of monitoring systems and breakers to

    continuously monitor the concentration of the methane in an environment where

    flammable and explosive mixed gases exist.


    3.It has the functions of longdistance communication,on spot display, sound & light

    alarming,infrared remote adjusting, and is easy to install and operate etc.

    Main specification:

    Item

    Specification

    Measuring range(CH4)


    (0~4)%

    Measuring Error (CH4)

    0~1.00

    More than1~3.00

    More than 3.00~4.00

    Less than ±0.1

    ±10% true value

    Less than±0.3

    Accuracy

    0.01%CH4

    Response Time

    Less than 20s

    Input Voltage

    DC (9~24)V

    Output Signal

    (200~1000)Hz

    Digital Signal

    2400bps

    Transmission Distance

    More than 2km

    Alarm Point

    continuous adjustable, set as 1.00% CH4

    Alarm Mode

    Intermittent sound & light alarm

    Breaking Point

    continuous adjustable, set as 1.50% CH4

    Sound Level

    More than 85dB

    Explosion Protection

    Exibd I

    Working Life

    More than 1year

    Display mode

    3 digital LED

    Dimensions

    270×120×50mm

    Weight

    1kg

    Related Equipment

    DJ4G-Z mainframe for coal mine fixed methane breaker

    Fittings

    FYF5 coal mine remote control
