    Multi-Function Ventilation Meter JFY-6

    Ask Lasest Price
    Brand Name : TOPSKY
    Certification : Explosion-proof Certificate
    Model Number : JFY-6
    Delivery Time : 3 days
    Payment Terms : TT
    Supply Ability : 500 pieces per month
    • Product Details
    • Company Profile

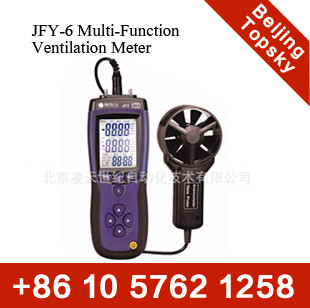

    Multi-Function Ventilation Meter JFY-6


    Qualifications: Coal Mine Safety Certificate

    Explosion-proof Certificate

    Inspection Certification


    Applications:

    JFY-6 Multi-Function Ventilation Meter is an intrinsically safe and explosion-proof instrument, especially designed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.

    It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting , chemical industry , Clean room testing, HVAC commissioning and troubleshooting, Ventilation evaluations, Process air flow testing and all kinds of environment that needed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.


    Key features:

    · Intrinsically safe and explosion-proof instrument

    · Best-in-class air velocity accuracy

    · Displays up to 6 measurements simultaneously

    · Large graphic display

    On-screen messages and instructions

    · Intuitive menu structure allows for ease of use and setup

    · Multiple data logging formats

    · Bluetooth communications for transferring data or remote polling

    · Includes downloading software with USB cable

    · Fast calibration and repair service—just send in the probe


    Technical specification:


    Range







    air velocity

    0.2 to 20 m/s



    temperature

    -20 to 50℃



    relative humidity

    0 to 100% RH



    barometric pressure

    100.00~1400.00hPa



    different pressure

    -1100.00~1100.00hPa

    Accuracy







    air velocity

    ±0.4 m/s



    temperature

    ±2.5%



    relative humidity

    ±2% RH



    barometric pressure

    2% of reading



    different pressure

    ±2%

    Resolution







    air velocity

    0.01 m/s



    temperature

    0.1℃



    relative humidity

    0.1% RH



    different pressure

    0.01mm Hg, 1 Pa

    Data storage capabilities

    15000test IDs(manual, auto save continuous)

    Explosion protection

    Exibd I

    Protection grade

    IP54

    External Meter Dimensions

    203mm x 75mm x 50mm

    Power Requirements

    9V 1000mAh lithium battery

    Accessories:

    Rotating Vane Probe, USB cable , lithium battery, Carrying case and Operate guidebook.
